Common NC Program-SIEMENS 802DM

1. Machining program listing

M03S1000

M06 T1D1

N110 G17 G0 G90 G94 F2000

G54 X0 Y0 Z20

CYCLE71( 10, 0, 2,-11, 0, 0,

100, 100, 0, 6, 3, 5, 0, 4000, 11, 2)

N125 G0 G90 X0 Y0

N130 M30

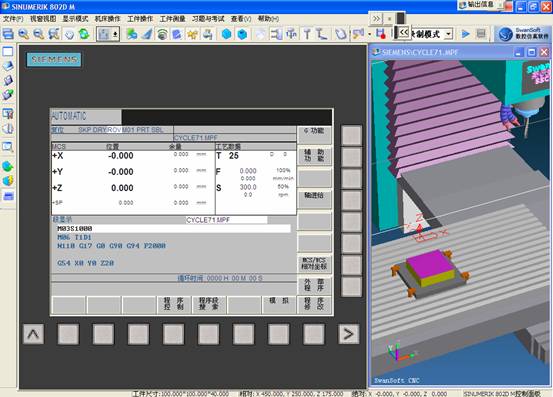

2. 3DM machining window

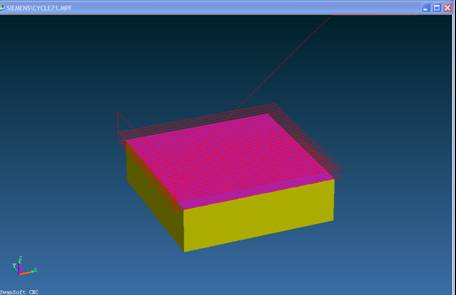

3. Two-dimensional machining trochoid
