Nanjing Swan simulation software has perfected some classical cycles of SIEMENS 802DM and SIEMENS 810D/840D M ：
CYCLE71——face milling ；
LONGHOLE——long hole ；
POCKET4——circular pocket ；
POCKET3——square pocket ；
SLOT1——milling a slot ；
SLOT2——milling a circumferential slot ；
Cycle examples ：
CYCKE71 (_RTP, _RFP, _SDIS, _DP, _PA, _PO, _LENG, _WID, _STA, _MID, _MIDA, _FDP, _FALD, _FFP1, _VARI, _FDP1)
_RTP
| real | Retraction plane (absolute) |
_RFP |
real | Reference plane (absolute) |
_SDIS |
real | Safety clearance (enter without sign) |
_DP |
real | Final drilling depth (absolute) |
_PA |
real | Starting point (absolute), 1st axis of the plane |
_PO |
real | Starting point (absolute), 2nd axis of the plane |
_LENG |
real | Rectangle length along the 1st axis, incremental. The corner from which the dimension starts results from the sign. |
_WID |
real | Rectangle length along the 2nd axis, incremental. The corner from which the dimension starts results from the sign. |
_STA |
real | Angle between the longitudinal axis of the rectangle and the 1st axis of the plane (abscissa, enter without sign); Range of values: 0° ≤ _STA < 180° |
_MID |
real | Maximum infeed depth (enter without sign) |
_MIDA |
real | Maximum infeed width during solid machining in the plane as a value (enter without sign) |
_FALD |
real | Finishing dimension in the depth (incremental, enter without sign) |
_FFP1 |
real | Feedrate for surface machining |
_VARI |
integer | Machining type (enter without sign) UNITS DIGIT: Values:1 Roughing .2 Finishing TENS DIGIT: Values: 1. Parallel to the 1st axis of the plane, unidirectional 2 Parallel to the 2nd axis of the plane, unidirectional 3 Parallel to the 1st axis of the plane, changing direction 4 Parallel to the 2nd axis of the plane, changing direction |
_FDP1 |
real | Overrun travel in the direction of the plane infeed (incremental, enter without sign) |
You can mill a optional rectangular plane by using CYCLE71. The cycle distinguishes roughing and finish machining. The cycle machines without radius compensation of milling cutter. Deepness machining is executed when dry run

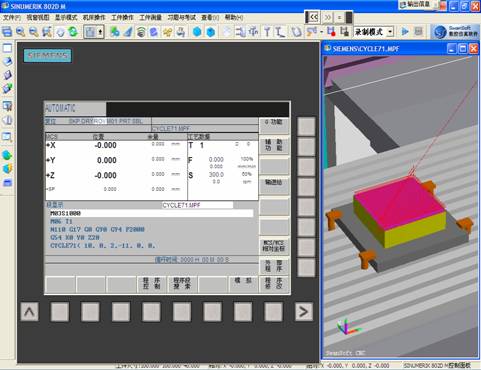

Fig.1－1
Fig.1－2
Notation ： Swan published a accessory tool （ SGD ） on a near day——visualized NC code debugging tool (SGD)
SWANSC G-code debug tool (for short SGD) is a simple and effective built-in tool which can call simulation NC code intuitionisticly, simplely and rapidly. SGD help you call G code rapidly and correctly and check format of each command intuitionisticly. With SGD ， you can even check every G code and check every corresponding locus in the condition of a visualized three-dimensional graphics. SGD support kernel code of many NC systems such as FANUC 、 SIEMENS 、 HUAZHONG NC 、 MITSUBISHI.
M03S1000
M06 T1D1
N110 G17 G0 G90 G94 F2000
G54 X0 Y0 Z20
CYCLE71( 10, 0, 2,-11, 0, 0,
100, 100, 0, 6, 3, 5, 0, 4000, 11, 2)
N125 G0 G90 X0 Y0
N130 M30

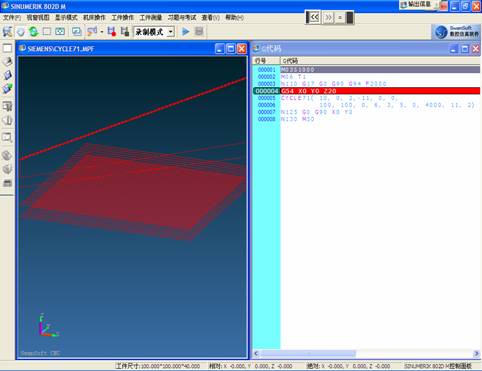

Fig.1－3
POCKET3 (_RTP, _RFP, _SDIS, _DP, _LENG, _WID, _CRAD, __PA, _PO, _STA, _MID, _FAL, _FALD, _FFP1, _FFD, _CDIR, _VARI, _MIDA, _AP1, _AP2, _AD, _RAD1, _DP1)
该循环可以用于粗加工和精加工。 在精加工时要求一个端面铣刀。
深度方向进刀始终从凹槽中心点开始，或者在那儿垂直进行；因此在此位置可以先预钻削孔。
| _RTP | real | Retraction plane (absolute) |
| _RFP | real | Reference plane (absolute) |
| _SDIS | real | Safety clearance (enter without sign) |
| _DP | real | Pocket depth (absolute) |
| _LENG | real | Pocket length, for dimensioning from the corner with sign |
| _WID | real | Pocket width, for dimensioning from the corner with sign |
| _CRAD | real | Pocket corner radius (enter without sign) |
| _PA | real | Reference point for the pocket (absolute), 1st axis of the plane |
| _PO | real | Reference point for the pocket (absolute), 2nd axis of the plane |
| _STA | real | Angle between the pocket longitudinal axis and the first axis of the plane (enter without sign); Value range: 0° ≤ _STA < 180° |
| _MID | real | Maximum infeed depth (enter without sign) |
| _FAL | real | Finishing allowance at the pocket edge (enter without sign) |
| _FALD | real | Finishing allowance at the base (enter without sign) |
| _FFP1 | real | Feedrate for surface machining |
| _FFD | real | Feedrate for depth infeed |
| _CDIR | integer | Milling direction: (enter without sign) Values: 0 Synchronous milling (according to the spindle direction) 1 .Conventional milling 2 .With G2 (independent of spindle direction) 3 .With G3 |
| _VARI | integer | Machining type: UNITS DIGIT Values: 1 Roughing 2 Finishing TENS DIGIT: Values: 0 Perpendicular to the pocket center with G0 1 Perpendicular to the pocket center with G1 2 Along a helix 3 Perpediculation along a pocket longitudinal axis |
| _MIDA | real | Maximum infeed width as a value in solid machining in the plane |
| _AP1 | real | Blank dimension of pocket length |
| _AP2 | real | Blank dimension of pocket width |
| _AD | real | Blank pocket depth dimension from reference plane |
| _RAD1 | real | Radius of the helical path on insertion (relative to the tool center point path) or maximum insertion angle for reciprocating motion |
| _DP1 | real | Insertion depth per 360° revolution on insertion along helical path |

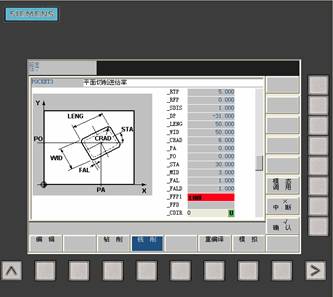

Fig. 2－1
Fig.2－2
M3S800
M06T01D01
G54G0X0Y0Z50
POCKET3 (5, 0, 1, -31, 50,
50, 6, 0, 0, 30, 3, 0.5,
0.5, 100, 100, 2, 11, 3)
M5
M30
图2－3
SLOT2 (RTP, RFP, SDIS, DP, DPR, NUM, AFSL, WID, CPA, CPO, RAD, STA1, INDA,
FFD, FFP1, MID, CDIR, FAL, VARI, MIDF, FFP2, SSF, _FFCP)
Cycle SLOT2 is a combined roughing － finish machining cycle. This cycle can machine ring slot, and these slots lie on an arc.
| _RTP | real | Retraction plane (absolute) |
| _RFP | real | Reference plane (absolute) |
| _SDIS | real | Safety clearance (enter without sign) Safety clearance (enter without sign) |
| _DP | real | Slot depth (absolute) |
| _DPR | real | Slot depth relative to the reference plane (enter without sign) |
| _NUM | integer | Number of slots |
| _AFSL | real | Angle for the slot length (enter without sign) |
| _WID | real | Circumferential slot width (enter without sign) |
| _CPA | real | Center point of circle of holes (absolute), 1st axis of the plane |
| _CPO | real | Center point of circle of holes (absolute), 2nd axis of the plane |
| _RAD | real | Radius of the circle (enter without sign) |
| _STA1 | real | Starting angle |
| _INDA | real | Incrementing angle |
| _FFD | real | Feedrate for depth infeed |
| _FFP1 | real | Feedrate for surface machining |
| _MID | real | Maximum infeed depth for one infeed (enter without sign) |
| _CDIR | integer | Mill direction for machining the circumferential slot Values: 2 (for G2) 3 (for G3) |
| _FAL | real | Finishing allowance at the slot edge (enter without sign) |
| _VARI | integer | Machining type Values: 0 = complete machining 1 = roughing 2 = finishing |
| _MIDF | real | Maximum infeed depth for finishing |
| _FFP2 | real | Feedrate for finishing |
| _SSF | real | Speed when finishing |
| _FFCP | real | Interfix feed, circular orbit, unit:mm/m |
Fig3－1
Fig.3－2
T01D01
G54G0X0Y0Z20
SLOT2 (10, 0, 5, -10, 10,
4, 40, 15, 0, 0, 25, 60,
0, 100, 100, 3, 3, 0.5, 2,
3)
M5
M30

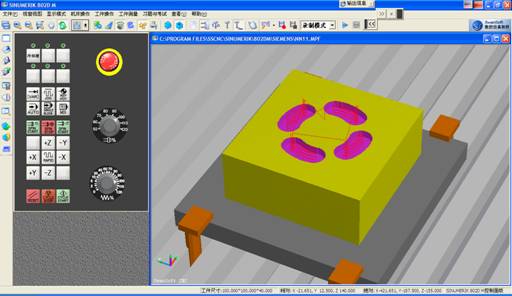

Fig.3－3
